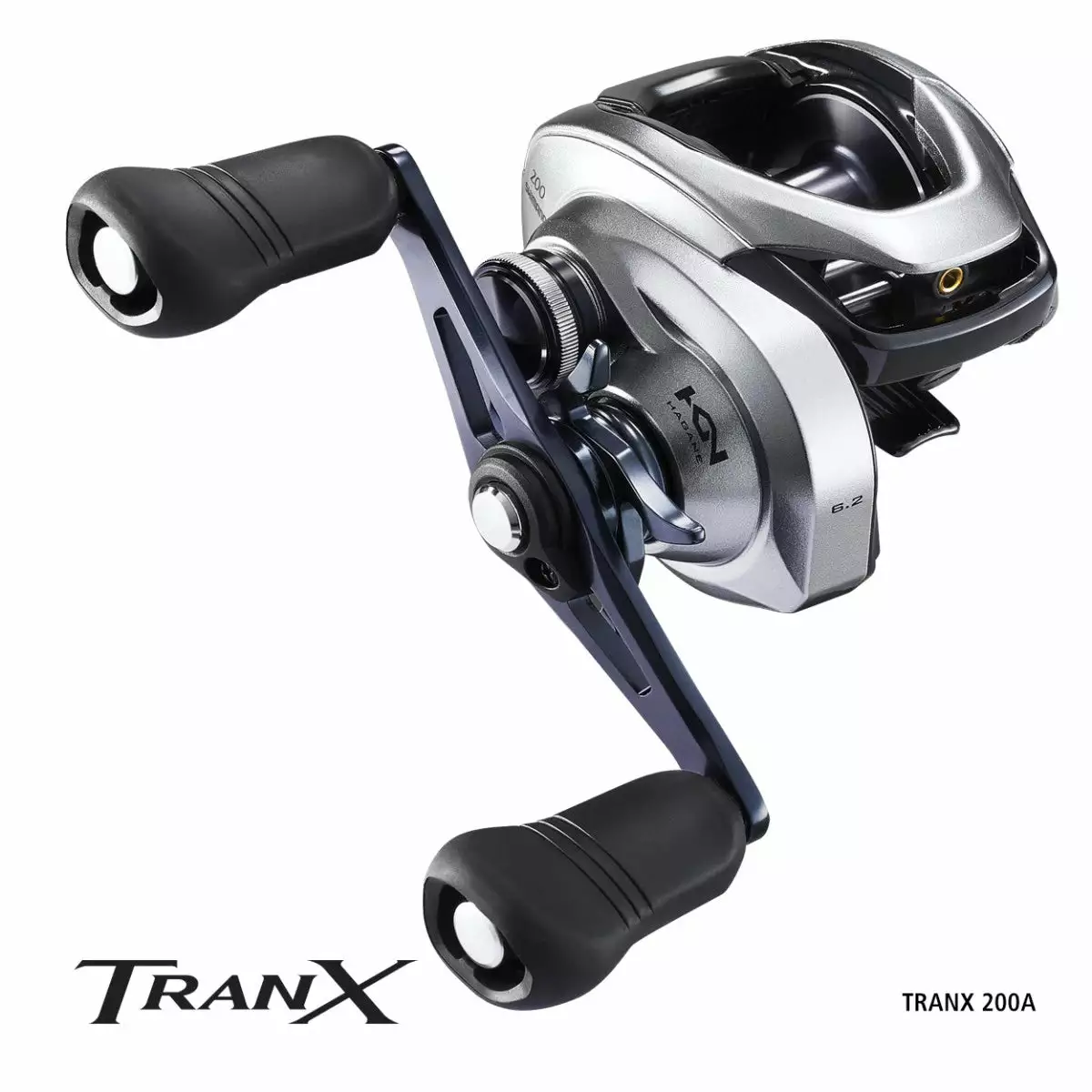

Shimano Tranx A Baitcast Reel

The Tranx incorporates Shimano’s CoreProtect concept that maintains a smooth and free feel while winding. It is ideally suited to both fresh and salt, ranging from light jigging, soft plastic use or casting hard body lures. Tranx reels not only fit beautifully in the hand, they are packed with more than enough drag capacity and saltwater durability, the Tranx is at the next level.

The HAGANE Body is produced from highrigidity aluminium or magnesium. This creates stiffness and impact resistance, while at the same time eliminating flexing of the body. The result is a rocksolid housing and support for the moving internal gearing and greater efficiency throughout the reel.

SUPER FREE SPOOL – The Super Free bearing supported pinion gear system (SF) was designed to eliminate friction on the spool shaft during the cast. In standard baitcasting reels, when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft, creating friction and limiting the length of the cast. With SF, the pinion gear is supported by a ball bearing, and when the clutch is disengaged the pinion gear and spool shaft are kept in precise alignment. The result is zero friction on the spool shaft for increased freespool.

VBS uses centrifugal force rather than magnets to aid controlling the cast. The individual brake weights, when turned on, are forced outward at the beginning of the cast when backlashes most often occur, causing friction that reduces the speed of the spool. Once the spool speed begins to slow, the pressure lessens, allowing the spool to continue spinning. The result is a much more consistent spool speed that is easier to manage and takes advantage of the reel’s maximum casting distance.

CoreProtect prevents water entering the body, from under the rotor at the front of the body, and also into the Roller Bearing unit.

Shimano S ARB bearings are high corrosion resistant ARB ball bearings with an extra shield for improved protection against sand, salt or dust.

XShip is a combination of features that work together to create much greater efficiency. By positioning the pinion gear close to the centre line of the large diameter drive gear, more power is transferred from the handle to the rotor. The pinion gear is also supported by two Shimano ARB roller bearings. This creates more stability.

CROSS CARBON DRAG – This carbon drag material provides a wider range of drag settings, along with the smoothest Shimano drag performance ever.

Shimano’s S3D technology leads to significantly reduced spool vibration. By designing a balanced and uninform thin wall aluminium constructed spool, S3D creates an incredibily smooth feeling when casting and retrieving lures.



Features

• 10 YEAR WARRANTY
• SALTWATER READY
• HAGANE BODY
• X-SHIP
• CROSS CARBON DRAG
• SHIELDED ANTI-RUST BEARINGS
• HIGH CAST RATING
• STAR DRAG



Specifications

ITEM CODE	RETRIEVE PER CRANK (CM)	MAX DRAG (KG)	DESCRIPTION	BEARINGS	GEAR RATIO	POWERPRO BRAID (LB/YDS)	WEIGHT (G)	LINE CAPACITY (MM/M)
TRX150A	25	5.9	TRANX 150A	3+1	6.3:1	20/150	189	0.28/190
TRX200A	66	5.5	TRANX 200	3+1	6.2:1	30/190	220	0.28/190
TRX200AHG	77	5.5	TRANX 200HG	3+1	7.2:1	30/190	220	0.28/190
TRX201AHG	77	5.5	TRANX 201HG LEFT HAND	3+1	7.2:1	30/190	220	0.28/190
TRX201HG	77	5.5	TRANX 201HG LEFT HAND	3+1	7.2:1	30/190	220	0.28/190
TRX300A	75	10	TRANX 300	5+1	5.8:1	50/190	330	0.30/235
TRX300AHG	100	8	TRANX 300 HG	5+1	7.6:1	50/190	330	0.30/235
TRX301A	75	10	TRANX 301 LEFT HAND	5+1	5.8:1	50/190	330	0.30/235
TRX400AHG	100	8	TRANX 400 HG	5+1	7.6:1	50/275	340	0.42/160
