Shimano Stella FK Spinning Reel

The legacy of STELLA represents the long history of Shimano industry leading design and manufacturing technologies, the development is never-ending. This new generation of STELLA sets an unmatched performance standard with a number of upgrades for the ultimate fishing experience. True to its rich history, Infinity Evolution continues.

The new Stella features the following major technology upgrades for 2022. Infinity Cross achieves overwhelming gear durability through a revised drive and pinion gear design with improved surface area contact and meshing. Infinity Loop creates a precise winding pattern which drastically reduces friction as line leaves the spool, resulting in exceptional casting performance. Infinity Drive greatly decreases frictional resistance, increasing power transmission and torque when winding under heavy loads. An Anti-Twist Fin has been installed near the line roller to maintain line tension and prevent line wrapping around the spool in an uneven manner. While Dura Cross, a revolutionary new drag washer design, provides a substantial increase in durability while providing smooth consistent drag performance.

In addition to this, the Stella still continues to feature the super durable cold forged Hagane Gear, Micromodule II gearing, Silent Drive and X-Ship for smooth transmission and light winding. To ensure on water performance X Protect water resistant technology still features and the Long Stroke Spool design provides maximum casting performance.



Features

INFINITY XCROSS – Advancements in manufacturing technology and gear tooth design improve the surface contact and meshing between the drive gear and pinion gear. This revolutionary design efficiently distributes the load placed on the gear tooth surface across a wider area to prevent damage from stress points while significantly improving overall gear durability.

INFINITY LOOP – Advancements in the internal structure and design extend the spool’s oscillation to enable the spool to move up and down at an extremely low speed. This technology creates a precise winding pattern with less overlap that significantly reduces friction as the line leaves the spool during a cast. The result is smooth and exceptional casting performance, especially of light lures.

INFINITY DRIVE – The Infinity Drive structure is a more advanced version of the conventional X-SHIP structure that created exceptionally light winding. The main shaft, which had previously been supported by the pinion gear, is now supported by a new and unique low-friction bushing that significantly decreases frictional resistance. In addition, the main shaft has undergone a proprietary surface treatment and special processing to drastically reduce rotational torque, constructing a reel that can actively wind even under heavy loads.

ANTI TWIST FIN – The flexible polymer fin is installed near the line roller. This maintains line tension to reduce sagging and prevents the line from falling off the bottom of the spool or wrapping around the spool in an uneven manner.

DURA CROSS DRAG – Constructed to enhance overall durability, this revolutionary drag washer incorporates cutting-edge materials woven in a unique pattern compared to conventional drag washers. Without sacrificing a smooth drag feel, this new material is greater than 10x more durable for improved drag performance.

PROPULSION LINE MANAGEMENT SYSTEM – The most obvious component of the Propulsion Line Management System is the new Propulsion Spool Lip design. Through tens of thousands of casting tests and computer simulations, Shimano’s new spool lip design provides longer casting distances than a standard spool lip design while also preventing backlashes and wind knots from forming.



Specifications

MODEL	GEAR RATIO	MONO LINE CAP. (lb test/yds)	PowerPro Line Cap (lb test/yds)	MAX DRAG (lb)	BALL BEARINGS	WEIGHT (oz)
STL1000FK	5.1:1	2/270, 4/160, 6/110	10/95, 15/75, 20/65	7	12+1	5.80
STL2500HGFK	5.8:1	8/140, 10/120	10/150, 15/145, 30/100	20	12+1	7.40
STLC3000XGFK	6.4:1	6/230, 8/170, 10/140	10/200, 20/140, 40/105	20	12+1	7.40

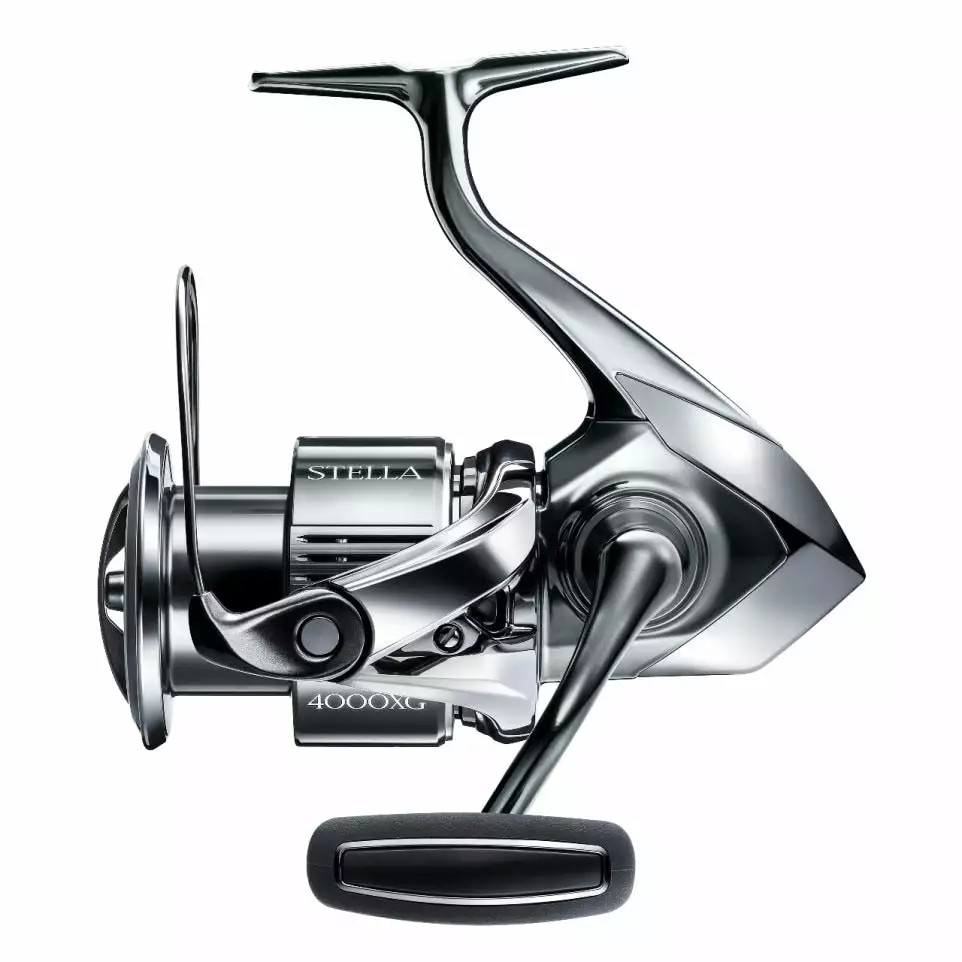

STL4000XGFK	6.2:1	10/200, 12/160	15/230, 30/180, 50/120	24	12+1	9.20

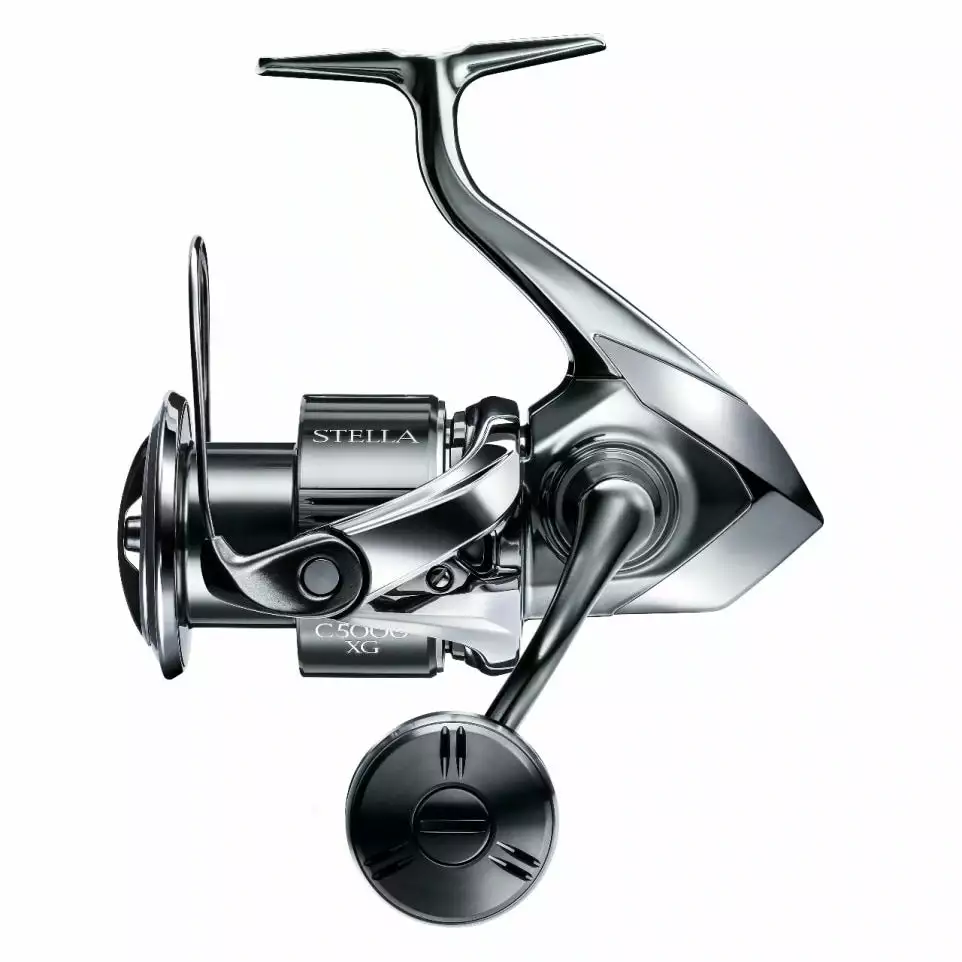

STLC5000XGFK	6.2:1	12/195, 14/165	20/260, 30/235, 40/185	24	12+1	9.20
