Shimano Nasci FC Spin Reel

The 2021 Nasci series sets the benchmark for affordable and quality spinning reels. Now incorporating a range of upgrades at a great price means you can step up your fishing game and gear quality for less.The cold-forged Hagane Gear technology provides unparalleled gear durability and Silent Drive which is the same technology found in Shimano’s Stella range now features in the Nasci. This makes it smoother due to finer gear tolerances, reduces vibration and improves the longevity of the reel. Suitable in both freshwater and inshore saltwater environments, Nasci spinning reels feature CoreProtect water repellent technology which increase durability and water resistance without creating a heavy winding feeling. The ball bearing count has been also increased to 5+1 and a new screw in handle design has been adopted to compliment the new stunning silver cosmetics.



Features

The HAGANE Drive Gear is produced by Shimano’s coldforging technology, without the need for additional machining. This delivers a longlasting smoothness, strength, lightness and power at the very heart of the reel. Traditional diecast, machined gears are less durable under heavy loads.

XShip is a combination of features that work together to create much greater efficiency. By positioning the pinion gear close to the centre line of the large diameter drive gear, more power is transferred from the handle to the rotor. The pinion gear is also supported by two Shimano ARB roller bearings. This creates more stability.

COREPROTECT – CoreProtect prevents water entering the body, from under the rotor at the front of the body, and also into the Roller Bearing unit.

G FREE BODY – G Free Body technology has been developed to shift the reel’s centre of gravity closer to the rod. This has been achieved by moving the worm shaft oscillation mechanism 19mm from the bottom of the reel to the top. By moving the centre of gravity closer to the anglers hand position, the G Free Body helps to reduce fatigue and enhance casting comfort.

Shimano ARC Spool is a patented spool design with an angled spool lip. This design enables the line to leave the spool with less friction and in smaller coils resulting in longer more accurate casts. ARC spools are proven to reduce backlash and wind knots when using braid.



Specifications

ITEM CODE	BEARINGS	MAX DRAG (KG)	GEAR RATIO	RETRIEVE PER CRANK (CM)	MONO CAPACITY (KG/M)	POWERPRO BRAID (LB/YDS)	WEIGHT (G)

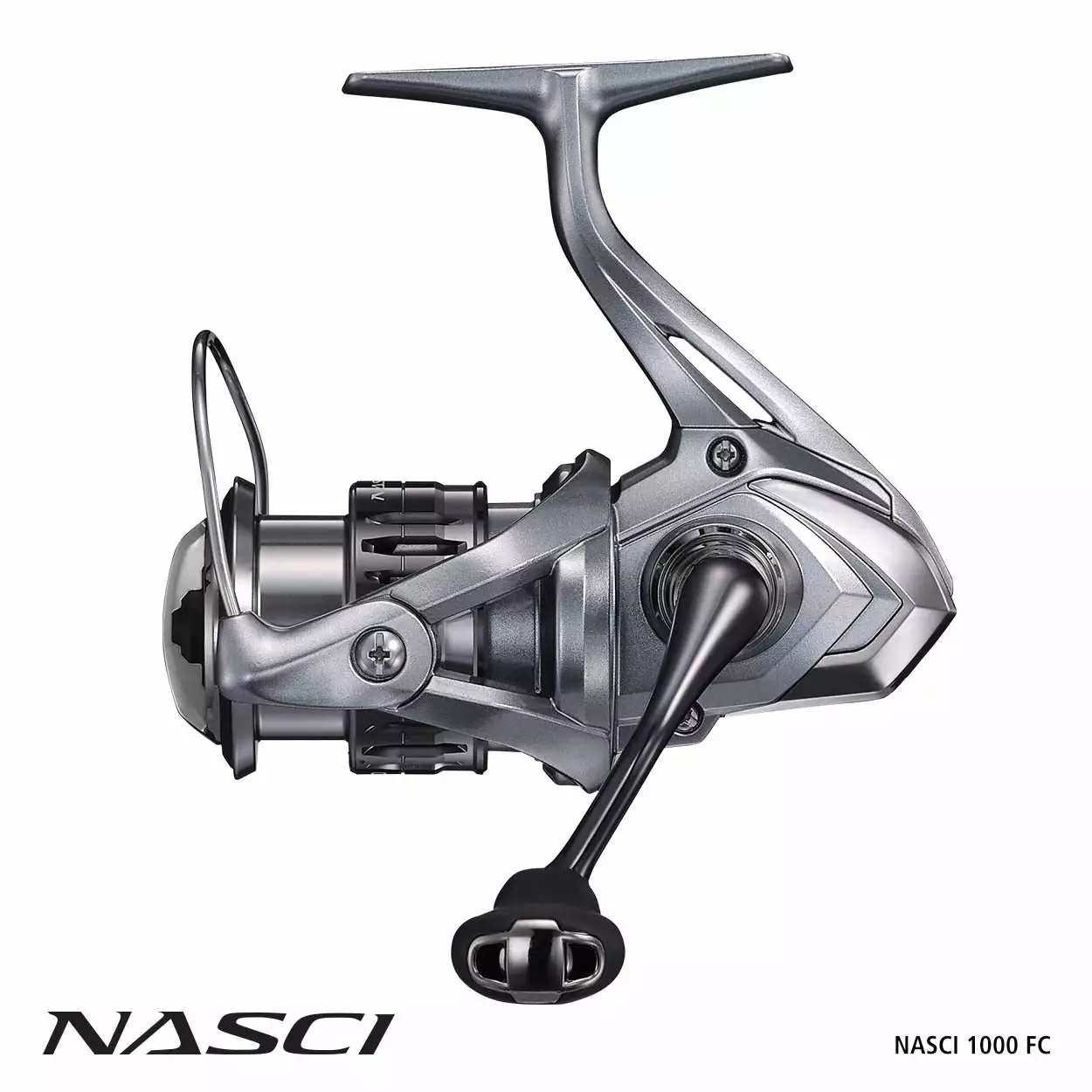

NAS1000FC	5+1	3	5.0:1	66	2/100	10/95	205

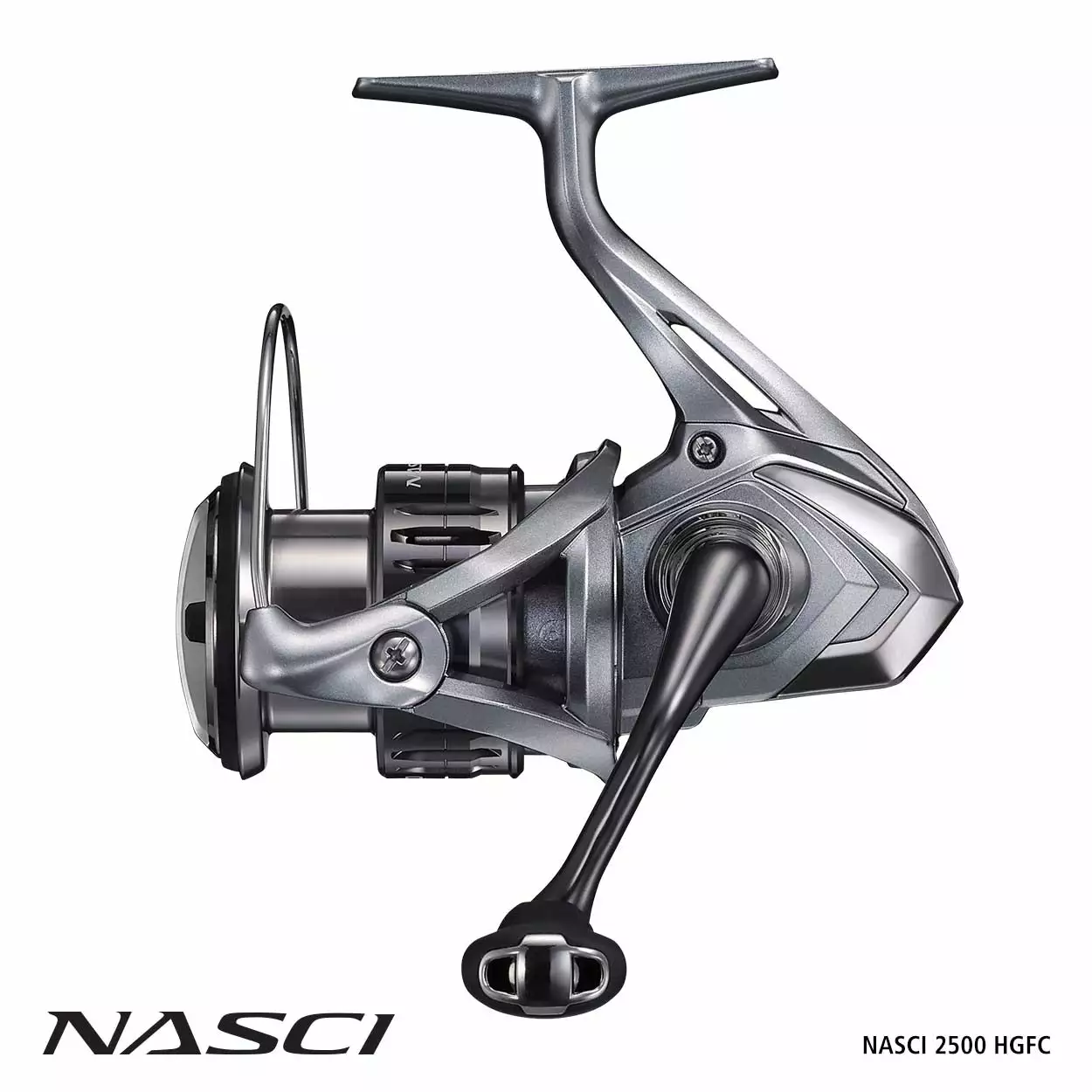

NAS2500HGFC	5+1	9	6.2:1	91	3/180	10/120	240

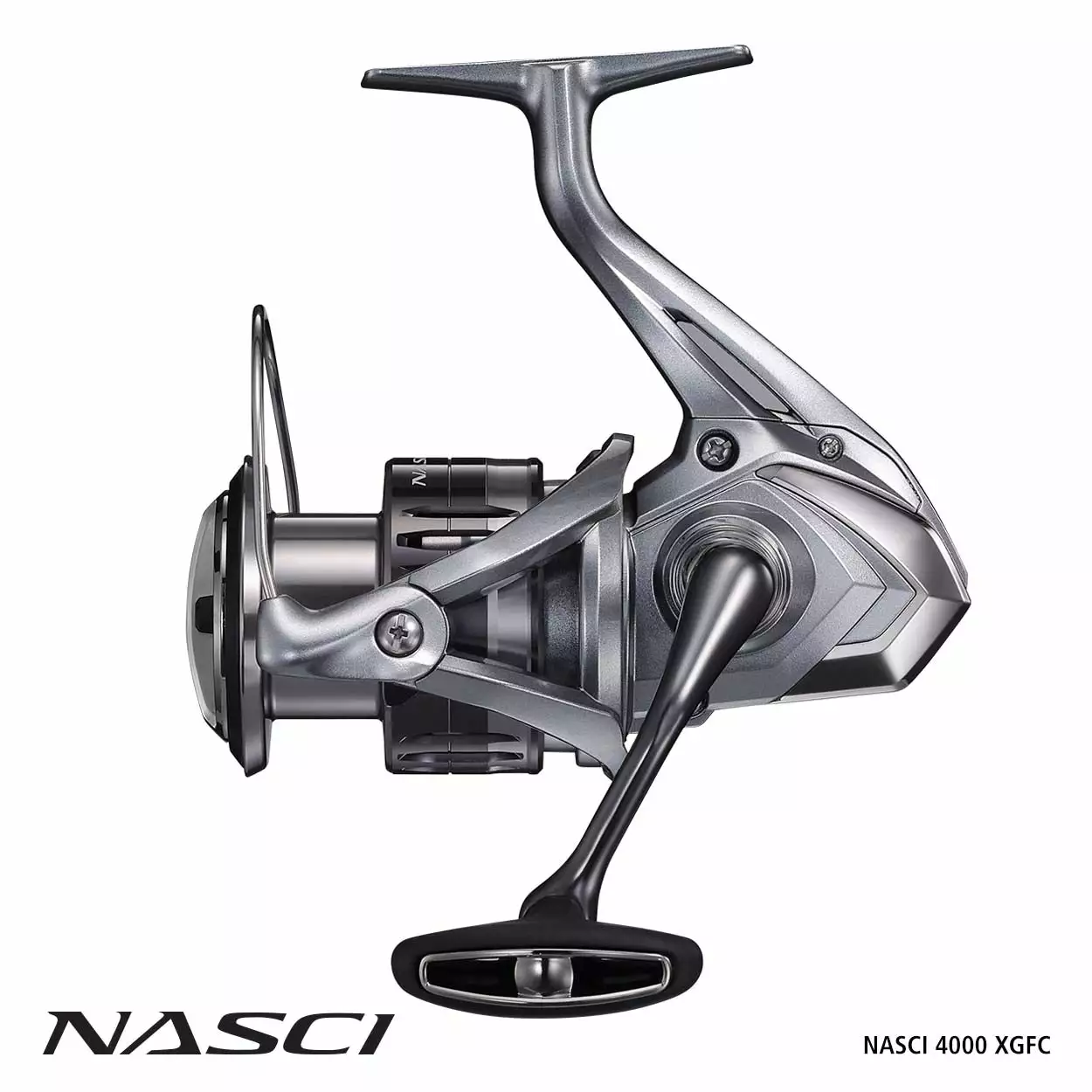

NAS4000XGFC	5+1	11	6.2:1	99	4/150	15/230	285
NASC3000HGFC	5+1	9	6.2:1	91	3/150	10/200	240

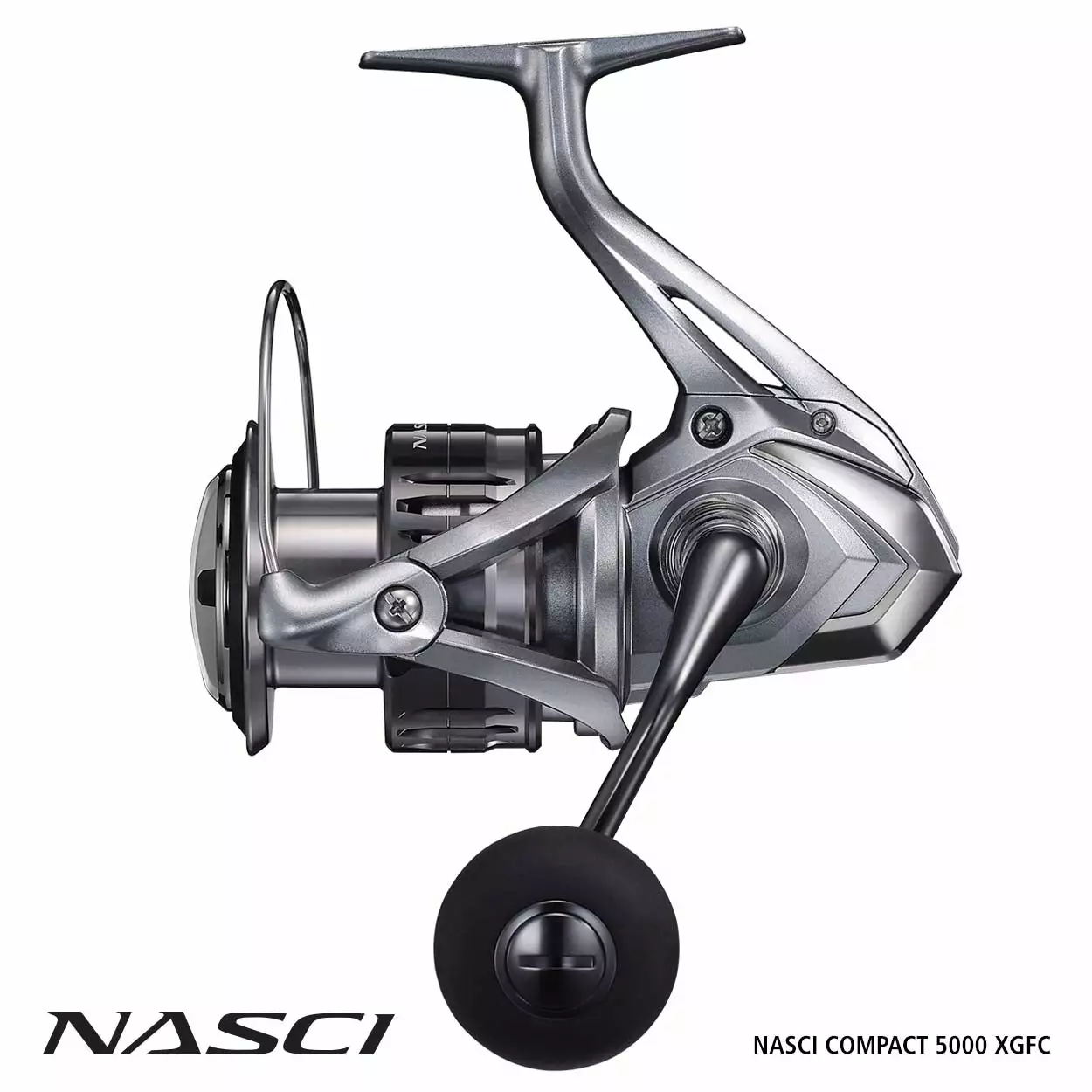

NASC5000XGFC	5+1	11	6.2:1	105	5/150	20/260	305
