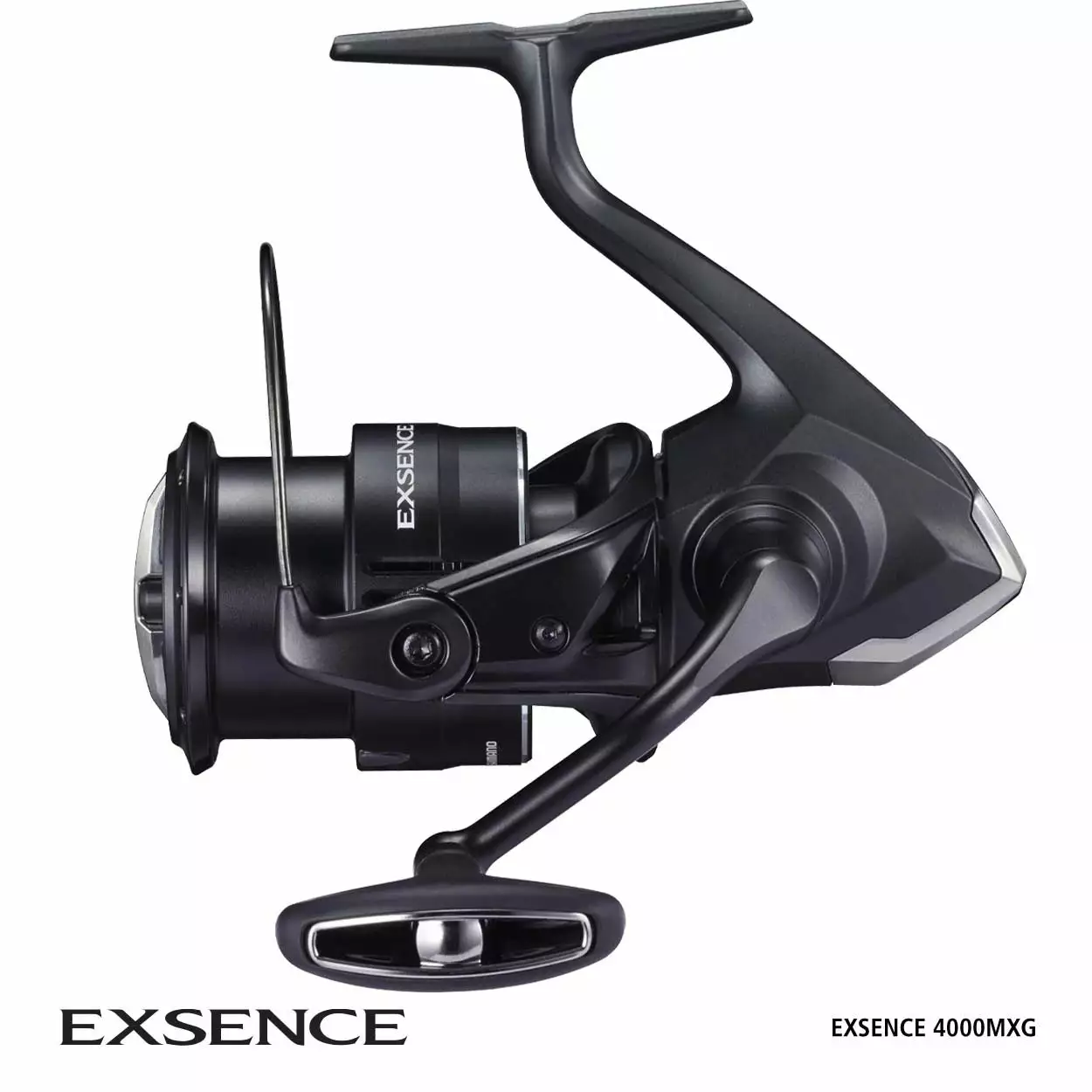

Shimano Exsence Spinning Reel

Exsence are a premium reel designed originally for the Japanese market. To ensure maximum longevity in salt water, X Protect employs an internal labyrinth structure that repels water entry, even when exposed to heavy spray. Hagane Gear, Hagane Body and X-Ship combine to provide a balance between strength and smooth winding. Additionally, Rapid Fire and Rigid Support Drag systems provide drag power adjustment at will, and silky line release.



Features

• Hagane Warranty
• Saltwater ready
• Shielded anti-rust bearings
• High crank power rating
• Hagane gear
• X-Ship



Technologies

The HAGANE Drive Gear is produced by Shimano’s coldforging technology, without the need for additional machining. This delivers a longlasting smoothness, strength, lightness and power at the very heart of the reel. Traditional diecast, machined gears are less durable under heavy loads.

The HAGANE Body is produced from highrigidity aluminium or magnesium. This creates stiffness and impact resistance, while at the same time eliminating flexing of the body. The result is a rocksolid housing and support for the moving internal gearing and greater efficiency throughout the reel.

Shimano ARC Spool is a patented spool design with an angled spool lip. This design enables the line to leave the spool with less friction and in smaller coils resulting in longer more accurate casts. ARC spools are proven to reduce backlash and wind knots when using braid.

CI4 PLUS – CI4+ is an advanced version of the original CI4. This highly technical material is 2.5 times stiffer than CI4 and is used on many highend Shimano reels to increase weight savings. Use of CI4+ for the body and rotor also delivers remarkable stiffness for better reel efficiency.

G FREE BODY – G Free Body technology has been developed to shift the reel’s centre of gravity closer to the rod. This has been achieved by moving the worm shaft oscillation mechanism 19mm from the bottom of the reel to the top. By moving the centre of gravity closer to the anglers hand position, the G Free Body helps to reduce fatigue and enhance casting comfort.

MICROMODULE – The addition of MicroModule gear technology to the worm shaft idle gear reduces oscillation vibration. This is an incredible breakthrough in design and delivers an outstanding level smoothness without sacrificing strength or durability. The enhanced smoothness results in greater sensitivity transmitted from your rod, line and lure to your hand.

The onepiece bail wire has no gap for line to snag on during normal operation. Made of Stainless Steel, it reduces friction and allows the line to get onto the line roller quicker.

RAPID FIRE DRAG – Allows anglers to change the drag cam on the reel within seconds. This system changes the drag curve on the reel to cater to specific techniques or fisheries. Reels equipped with the Rapid Fire system come standard with a Long Range Special (L.R.S.) curve and up to 7 other Rapid Fire cams are available as accessories.

Rigid Support Drag eliminates spool movement and wobble, even at light drag settings. The result is an incredibly smooth drag even at extremely light settings.

Shimano S ARB bearings are high corrosion resistant ARB ball bearings with an extra shield for improved protection against sand, salt or dust.

X Protect – The contact type triplelip structure is introduced to the roller clutch, the pivotal point concerning water resistance. In this structure, the first lip prevents water from entering through the space between the rotor and the body. In addition, the special grease between the second and third lip where it makes contact with the rotor collar located at the upper part of the roller clutch not only resists water from entering but also minimizes friction resistance. Without jeopardizing the ‘silky smooth rotation capacity’, the vital feature of STELLA SW, exceptional water resistance, has been achieved to withstand the crashing and splashing of waves and spray.

XShip is a combination of features that work together to create much greater efficiency. By positioning the pinion gear close to the centre line of the large diameter drive gear, more power is transferred from the handle to the rotor. The pinion gear is also supported by two Shimano ARB roller bearings. This creates more stability.

MGL ROTOR – The new design of the Magnumlite Rotor produces unprecedented light rotation. The rotor profile, which was previously symmetrical, is now asymmetrical. The bail arm mechanism, which was previously situated on the same side as the line roller, has been moved to the opposite side. This improves balance and combined with a lightweight line roller, titan bail and optimum arrangement of rotor thickness, a 14% saving in rotation inertia has been achieved increasing sensitivity to previously unreached levels.



Specifications

DESCRIPTION	BEARINGS	MAX DRAG (KG)	GEAR RATIO	RETRIEVE PER CRANK (CM)	WEIGHT (G)
EXSENCE 4000 HG	11+1	11	6.2:1	86	220
EXSENCE COMPACT 3000 HG	11+1	9	6.0:1	89	195
