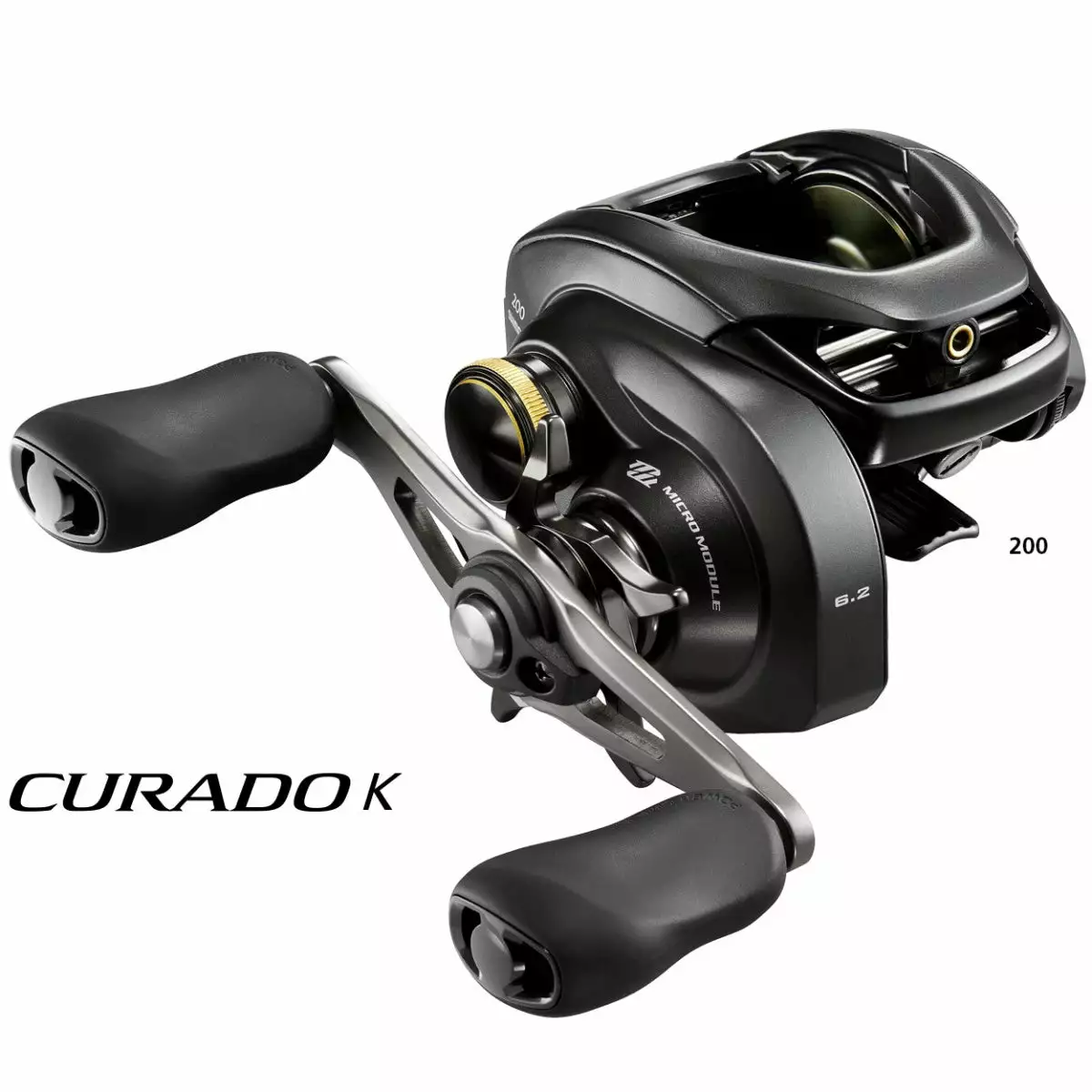

Shimano Curado K Baitcast Reel

The K series of Curado baitcast reels re-define saltwater durability. To withstand the saltwater environment, they feature a specially plated pinion gear, combined with a breakwater wall and drainage port to provide superior protection from water intrusion and corrosion. The durable Hagane Body houses Shimano’s innovative MicroModule gearing, it has X-Ship for smooth rotation, and the SVS Infinity Braking System for enhanced casting performance.

The HAGANE Body is produced from highrigidity aluminium or magnesium. This creates stiffness and impact resistance, while at the same time eliminating flexing of the body. The result is a rocksolid housing and support for the moving internal gearing and greater efficiency throughout the reel.

The addition of MicroModule gear technology to the worm shaft idle gear reduces oscillation vibration. This is an incredible breakthrough in design and delivers an outstanding level smoothness without sacrificing strength or durability. The enhanced smoothness results in greater sensitivity transmitted from your rod, line and lure to your hand.

Shimano S ARB bearings are high corrosion resistant ARB ball bearings with an extra shield for improved protection against sand, salt or dust.

XShip is a combination of features that work together to create much greater efficiency. By positioning the pinion gear close to the centre line of the large diameter drive gear, more power is transferred from the handle to the rotor. The pinion gear is also supported by two Shimano ARB roller bearings. This creates more stability.

CROSS CARBON DRAG – This carbon drag material provides a wider range of drag settings, along with the smoothest Shimano drag performance ever.

CI4 is an exclusive material created by the interfusion of carbon and polyamide. It is almost as strong as metal with the lightness of a composite. CI4 is used for the body and rotor on many Shimano reels.

Intelligent Digital Control braking system with an easy to use, 4 setting, externally adjustable brake dial. This will allow anglers to fish a wide variety of lures, in any conditions, with minimal adjustment to the reel.

The Super Free bearing supported pinion gear system (SF) was designed to eliminate friction on the spool shaft during the cast. In standard baitcasting reels, when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft, creating friction and limiting the length of the cast. With SF, the pinion gear is supported by a ball bearing, and when the clutch is disengaged the pinion gear and spool shaft are kept in precise alignment. The result is zero friction on the spool shaft for increased freespool.

Shimano’s newest innovation in brake system technology, SVS Infinity provides easytomanage, consistent spool control and brake force. With brake weights that use inner friction against the raceway during the cast, SVS Infinity controls spool speed for precision casting especially when using lighter lures. The external adjustment knob provides for quick, precise adjustments for either the conditions or when you switch baits.

Shimano’s S3D technology leads to significantly reduced spool vibration. By designing a balanced and uninform thin wall aluminium constructed spool, S3D creates an incredibily smooth feeling when casting and retrieving lures.



Features

• 10 YEAR WARRANTY
• DC TECHNOLOGY
• SALTWATER READY
• MICROMODULE GEARING
• HAGANE BODY
• X-SHIP
• SHIELDED ANTI-RUST BEARINGS
• CROSS CARBON DRAG
• HIGH CAST RATING
• HIGH CRANK POWER RATING



Specifications



ITEM CODE	RETRIEVE PER CRANK (CM)	MAX DRAG (KG)	DESCRIPTION	BEARINGS	GEAR RATIO	POWERPRO BRAID (LB/YDS)	WEIGHT (G)	LINE CAPACITY (MM/M)
CU200HGK	79	5	CURADO K 200 HG	6+1	7.4:1	30/190	215	0.28/190
CU200K	66	5	CURADO K 200	6+1	6.2:1	30/190	215	0.28/190
CU200XGK	91	5	CURADO K 200 XG	6+1	8.5:1	30/190	220	0.28/190
CU201K	66	5	CURADO K 201	6+1	6.2:1	30/190	215	0.28/190
