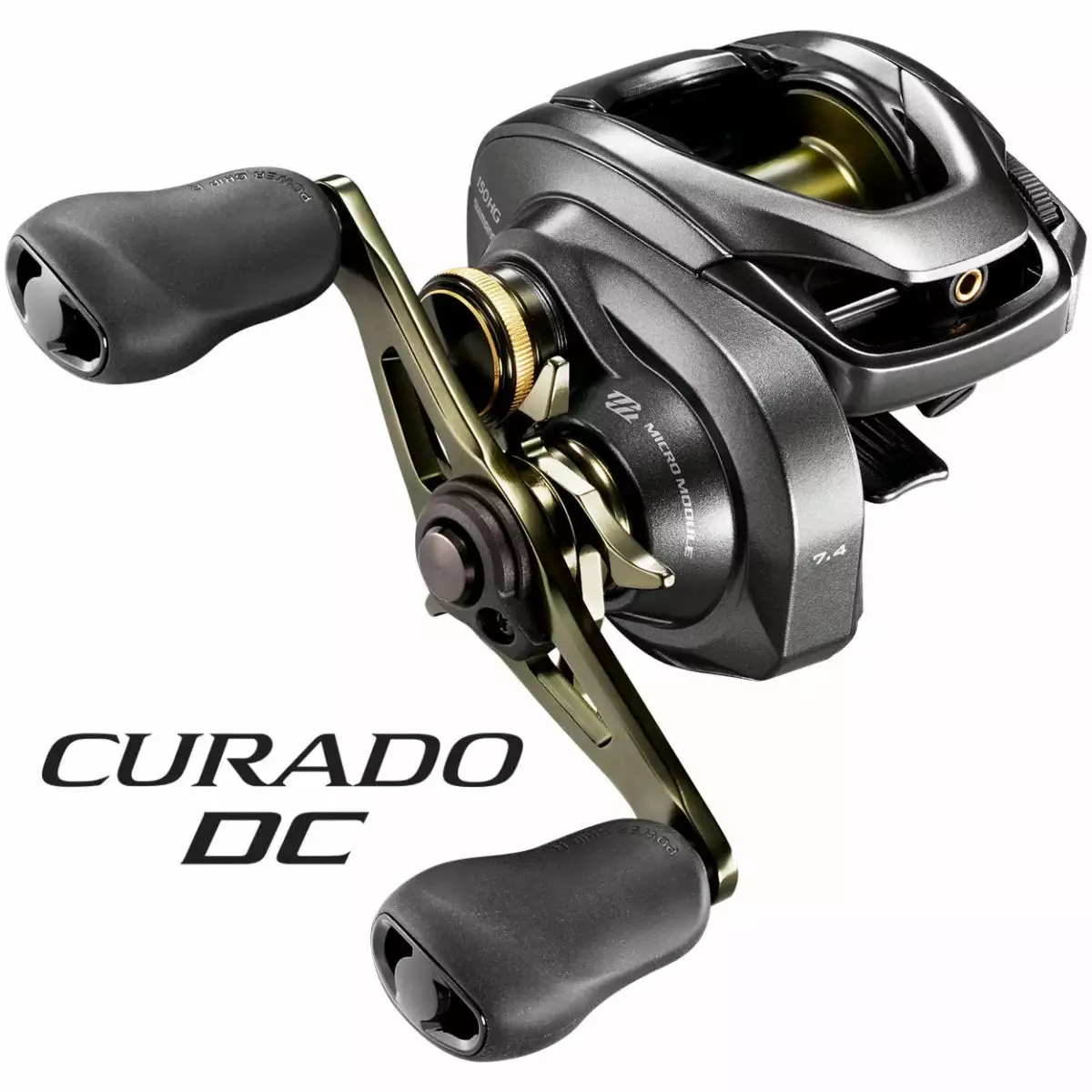

Shimano Curado DC Baitcast Reel

Built on the legacy of durability, dependability and versatility that Curado is known for, now with Shimano’s unique DC braking technology. Shimano’s new Digital Control braking system utilizes a microcomputer to monitor spool speed 1,000 times every second and apply the perfect amount of brake to prevent backlash and maximize distance. Anglers of all skill levels will appreciate less thumbing and trouble-free casting in all conditions.

The HAGANE Body is produced from highrigidity aluminium or magnesium. This creates stiffness and impact resistance, while at the same time eliminating flexing of the body. The result is a rocksolid housing and support for the moving internal gearing and greater efficiency throughout the reel.

The addition of MicroModule gear technology to the worm shaft idle gear reduces oscillation vibration. This is an incredible breakthrough in design and delivers an outstanding level smoothness without sacrificing strength or durability. The enhanced smoothness results in greater sensitivity transmitted from your rod, line and lure to your hand.

Shimano S ARB bearings are high corrosion resistant ARB ball bearings with an extra shield for improved protection against sand, salt or dust.

XShip is a combination of features that work together to create much greater efficiency. By positioning the pinion gear close to the centre line of the large diameter drive gear, more power is transferred from the handle to the rotor. The pinion gear is also supported by two Shimano ARB roller bearings. This creates more stability.

CROSS CARBON DRAG – This carbon drag material provides a wider range of drag settings, along with the smoothest Shimano drag performance ever.

CI4 is an exclusive material created by the interfusion of carbon and polyamide. It is almost as strong as metal with the lightness of a composite. CI4 is used for the body and rotor on many Shimano reels.

Intelligent Digital Control braking system with an easy to use, 4 setting, externally adjustable brake dial. This will allow anglers to fish a wide variety of lures, in any conditions, with minimal adjustment to the reel.



Features

• 10 YEAR WARRANTY
• DC TECHNOLOGY
• SALTWATER READY
• MICROMODULE GEARING
• HAGANE BODY
• X-SHIP
• SHIELDED ANTI-RUST BEARINGS
• CROSS CARBON DRAG
• HIGH CAST RATING
• HIGH CRANK POWER RATING



Specifications



ITEM CODE	RETRIEVE PER CRANK (CM)	MAX DRAG (KG)	DESCRIPTION	BEARINGS	GEAR RATIO	POWERPRO BRAID (LB/YDS)	WEIGHT (G)	LINE CAPACITY (MM/M)
CUDC150	66	5	CURADO DC 150	6+1	6.2:1	20/150	220	0.33/100
CUDC150HG	79	5	CURADO DC 150 HG	6+1	7.4:1	20/150	220	0.33/100
CUDC150XG	91	5	CURADO DC 150 XG	6+1	8.5:1	20/150	225	0.33/100
CUDC151	66	5	CURADO DC 151 LEFT HAND	6+1	6.2:1	20/150	220	0.33/100
