Penn Slammer IV Spin Reel

Designed for anglers who target the hardest fighting sportfish, PENN’s new Slammer IV spinning range takes the ultimate workhorse reel to another level.

Building off a proven platform of an IPX6 sealed body and spool from the Slammer III range, PENN has redesigned the Dura-Drag system in the Slammer IV to not only be better sealed, but also offer a wider range of usable drag, all while being bearing supported for extra smoothness. HT-100 drag technology is packed into the small, but tough, 2500 size, a new and highly sought-after addition to the Slammer family.

Whether you’re live baiting in the surf, spinning from the rocks, popper fishing a coral reef, deepwater jigging or switchbaiting a billfish, the Slammer IV range won’t let you down. Let the battle begin.



Features

• Improved IPX6 rated body and spool design with additional seals
• CNC Gear Technology with brass main and pinion gear
• 8+1 Sealed Stainless Steel Ball Bearing System with additional bearing to support the spool under heavy drag loads
• Hydrophobic line roller bearing to repel saltwater
• Reduced rotor weight for smoother operation
• Sealed Slammer drag system with Dura-Drag™ carbon fibre washers (sizes 3500-10500)
• HT-100™ carbon fibre drag washers (size 2500 only)
• Full Metal Body, side plate and rotor to eliminate any flex in frame (sizes 3500-10500)
• Full Metal Body and side plate, with graphite rotor to reduce weight (size 2500 only)
• Machined aluminium power knob and spare EVA knob across the range (excluding 2500 size which has EVA knob only)
• Automatic bail trip (sizes 2500-5500)
• Manual bail trip (sizes 6500-10500)



Specifications

MODEL

BRAID CAPACITY YD/LB

MONO CAPACITY Y / LB

MODEL

BRAID CAPACITY YD/LB

MONO CAPACITY Y / LB

GEAR RATIO

RECOVERY RATE

BEARING COUNT

MAX DRAG

DRAG TYPE

WEIGHT

BAIL TRIP

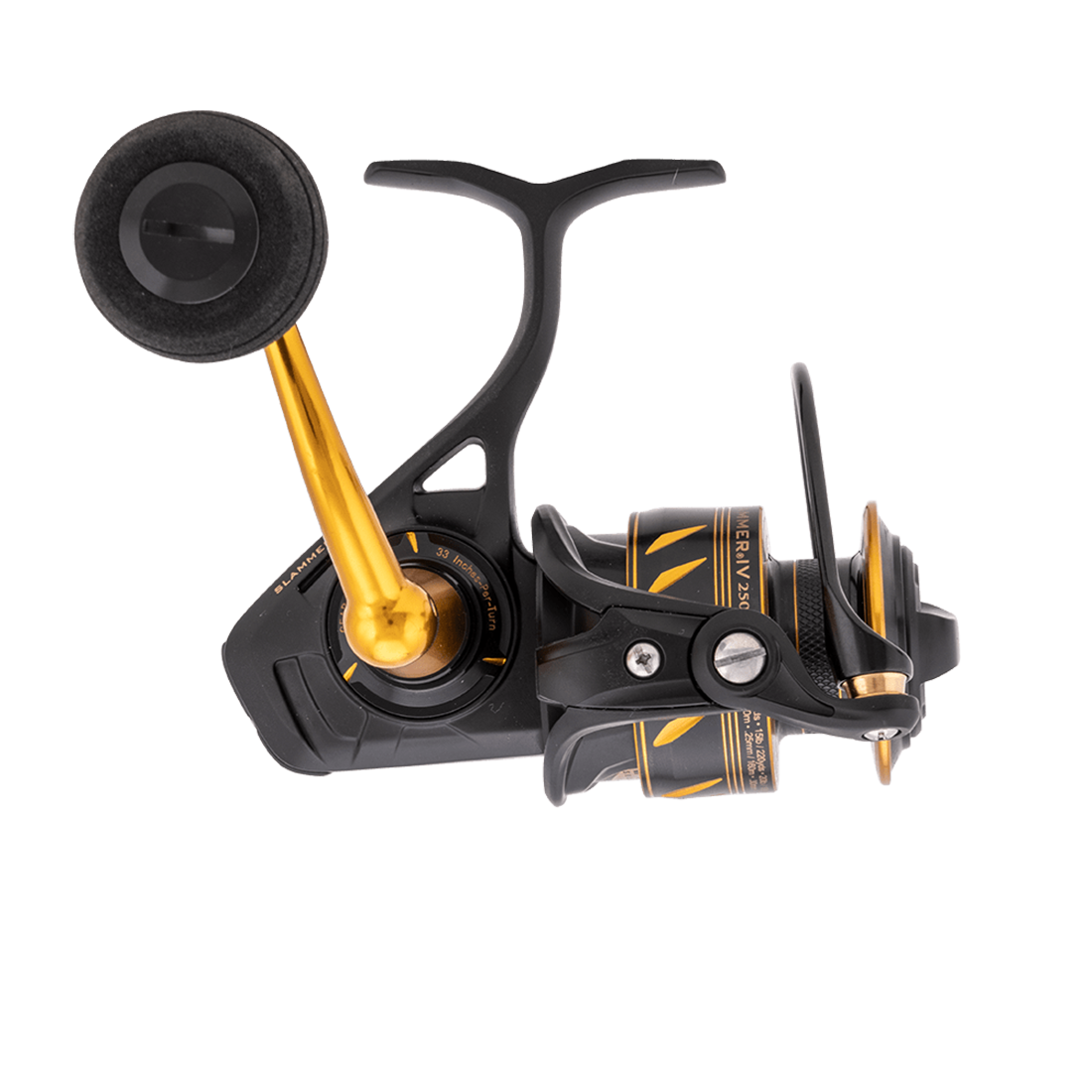

SLAIV2500

240/10 220/15 160/20

255/6 175/8 140/10

SLAIV2500

240/10 220/15 160/20

255/6 175/8 140/10

6.2:1

33in | 84cm

8+1

20lb | 9.1kg

HT-100

320g

Automatic

SLAIV2500HS

240/10 220/15 160/20

255/6 175/8 140/10

SLAIV2500HS

240/10 220/15 160/20

255/6 175/8 140/10

7.0:1

39in | 99cm

8+1

20lb | 9.1kg

HT-100

320g

Automatic

SLAIV3500

310/10 270/15 220/20

360/6 285/8 220/10

SLAIV3500

310/10 270/15 220/20

360/6 285/8 220/10

6.2:1

37in | 94cm

8+1

30lb | 13.6kg

DuraDrag

400g

Automatic

SLAIV4500

390/15 320/20 250/30

425/8 320/10 235/12

SLAIV4500

390/15 320/20 250/30

425/8 320/10 235/12

6.2:1

40in | 102cm

8+1

30lb | 13.6kg

DuraDrag

430g

Automatic

SLAIV4500HS

390/15 320/20 250/30

425/8 320/10 235/12

SLAIV4500HS

390/15 320/20 250/30

425/8 320/10 235/12

7.0:1

46in | 117cm

8+1

30lb | 13.6kg

DuraDrag

430g

Automatic

SLAIV5500

500/20 380/30 335/40

430/10 330/12 230/15

SLAIV5500

500/20 380/30 335/40

430/10 330/12 230/15

5.6:1

39in | 98cm

8+1

40lb | 18.1kg

DuraDrag

630g

Automatic

SLAIV6500

485/30 410/40 335/50

390/12 345/15 205/20

SLAIV6500

485/30 410/40 335/50

390/12 345/15 205/20

5.6:1

42in | 107cm

8+1

40lb | 18.1kg

DuraDrag

690g

Manual

SLAIV6500HS

485/30 410/40 335/50

390/12 345/15 205/20

SLAIV6500HS

485/30 410/40 335/50

390/12 345/15 205/20

6.2:1

48in | 122cm

8+1

40lb | 18.1kg

DuraDrag

690g

Manual

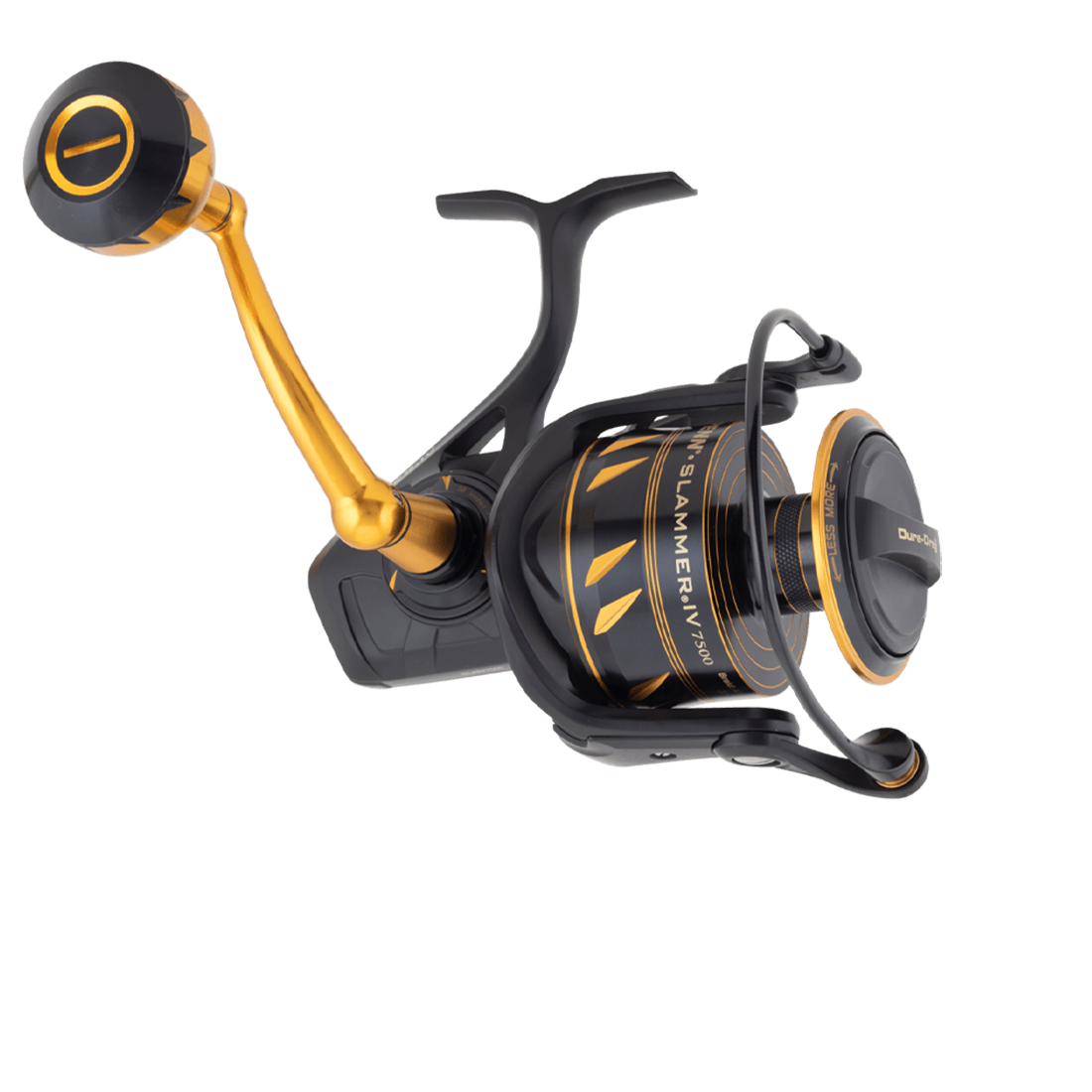

SLAIV7500

530/40 440/50 400/65

490/15 330/20 220/30

SLAIV7500

530/40 440/50 400/65

490/15 330/20 220/30

4.7:1

38in | 97cm

8+1

50lb | 22.6kg

DuraDrag

820g

Manual

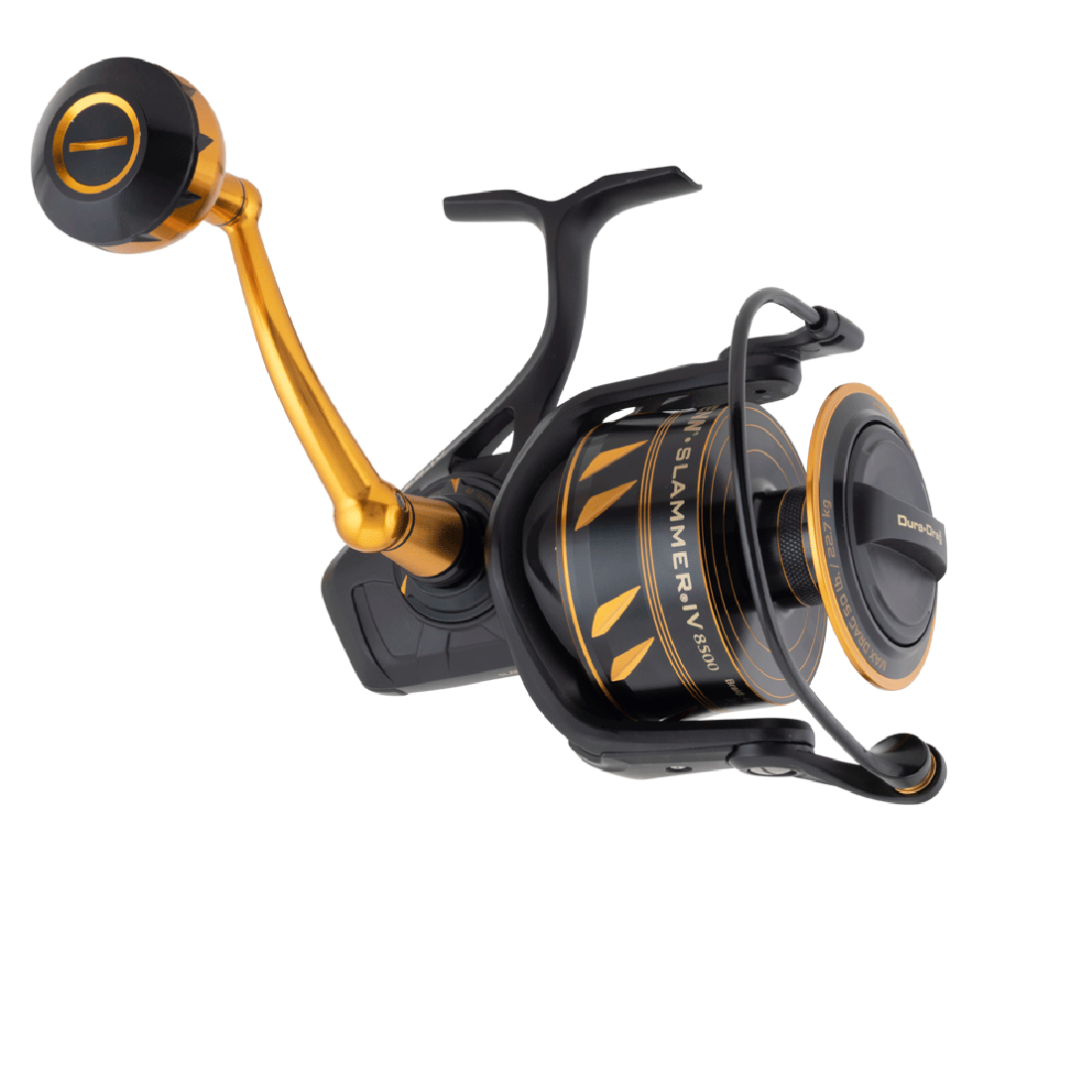

SLAIV8500

730/40 600/50 555/65

455/20 310/30 260/40

SLAIV8500

730/40 600/50 555/65

455/20 310/30 260/40

4.7:1

42in | 107cm

8+1

50lb | 22.6kg

DuraDrag

880g

Manual

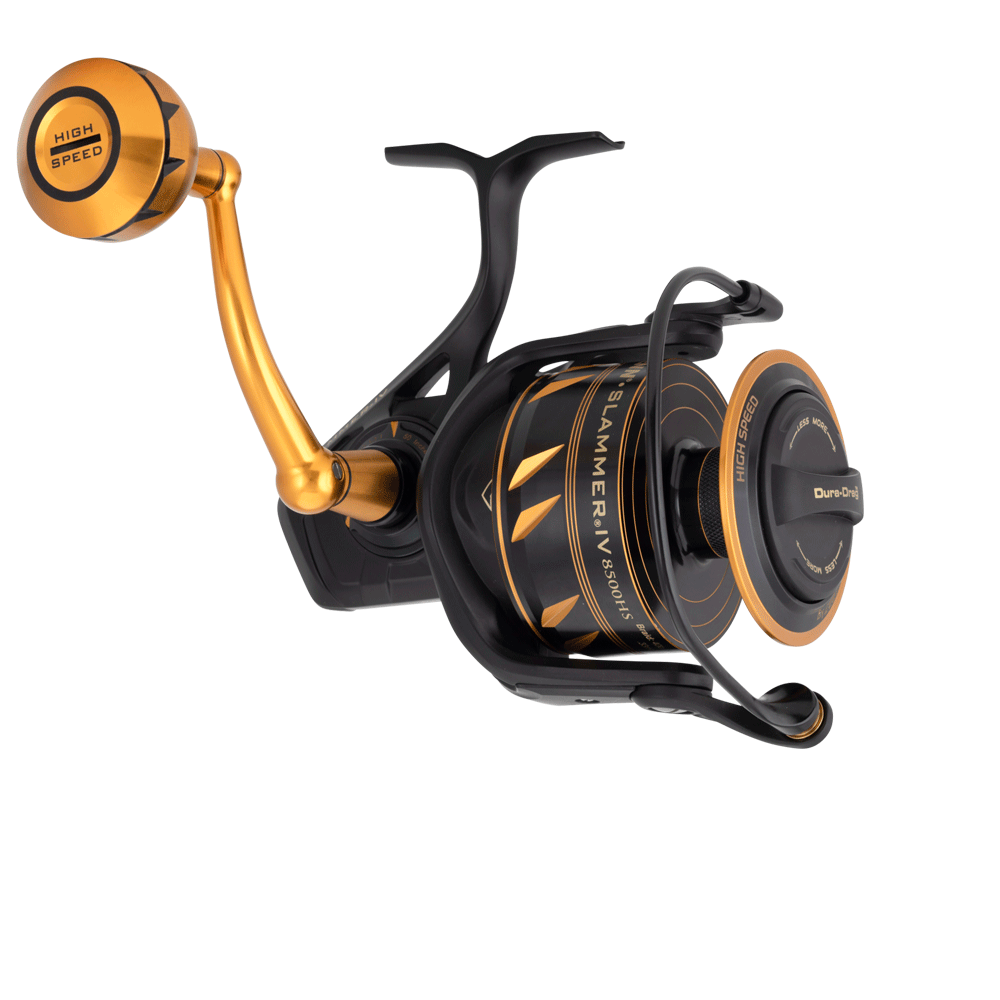

SLAIV8500HS

730/40 600/50 555/65

455/20 310/30 260/40

SLAIV8500HS

730/40 600/50 555/65

455/20 310/30 260/40

5.3:1

50in | 127cm

8+1

50lb | 22.6kg

DuraDrag

880g

Manual

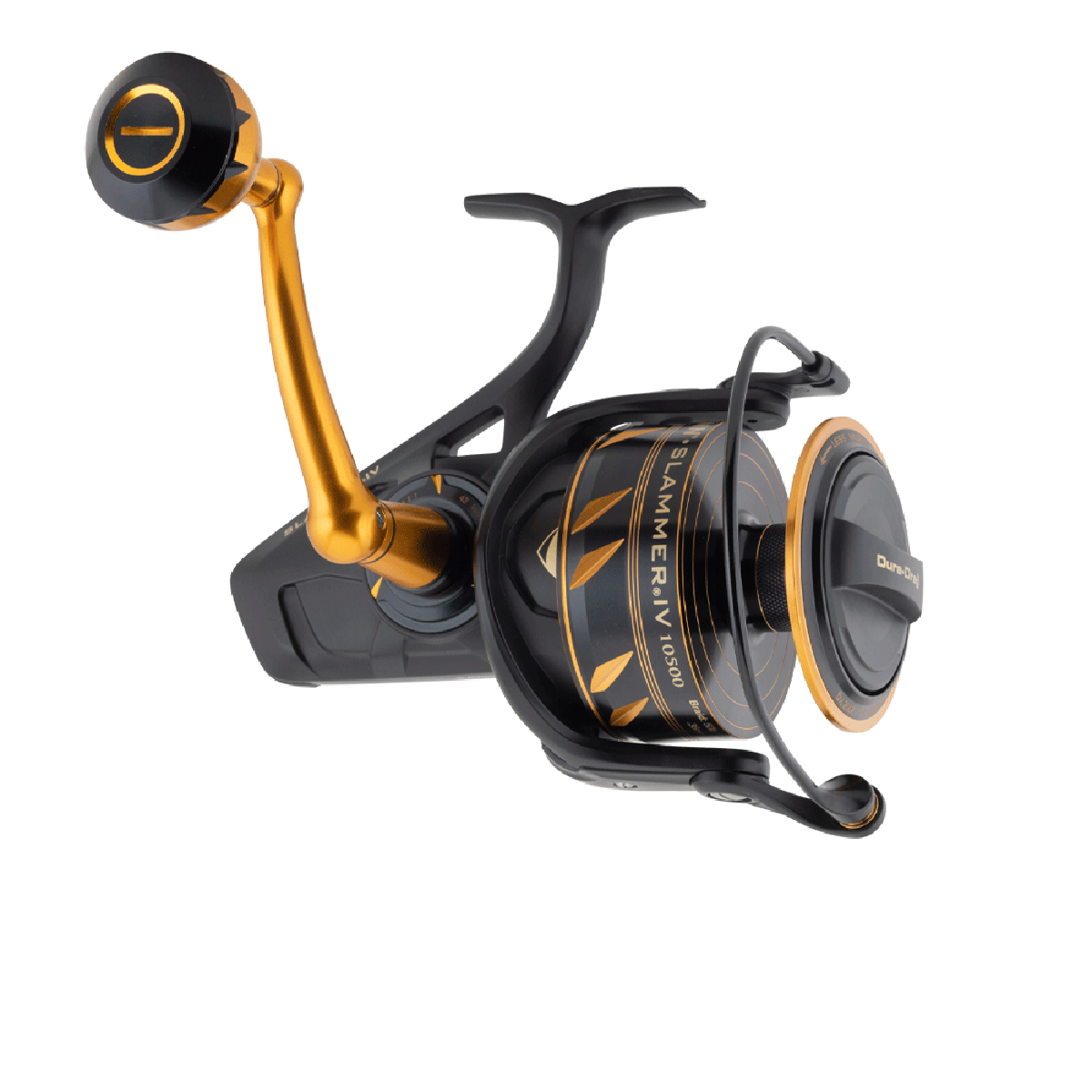

SLAIV10500

845/50 780/65 540/80

435/30 360/40 255/50

SLAIV10500

845/50 780/65 540/80

435/30 360/40 255/50

4.2:1

43in | 108cm

8+1

60lb | 27.2kg

DuraDrag

1220g

Manual
