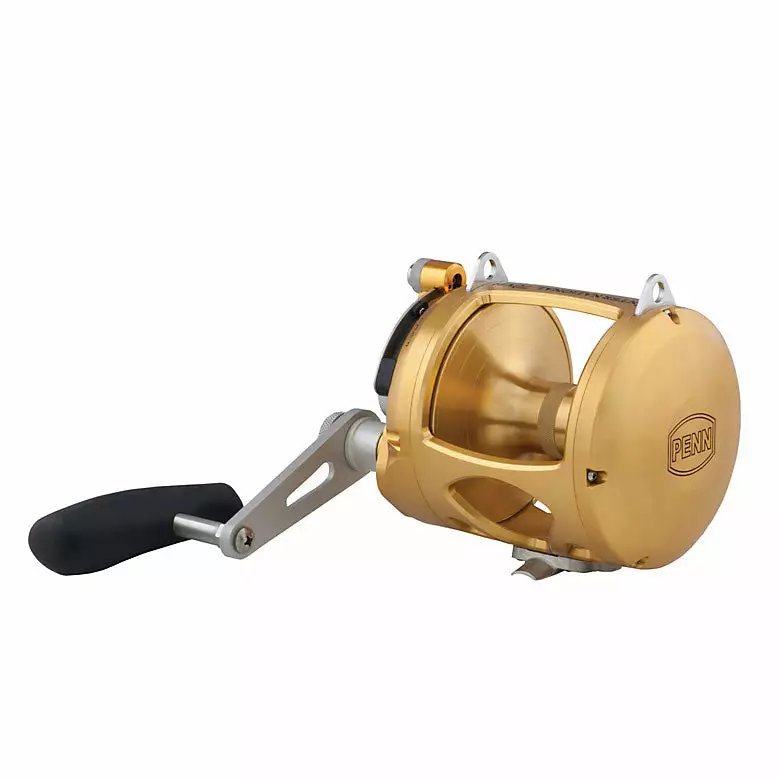

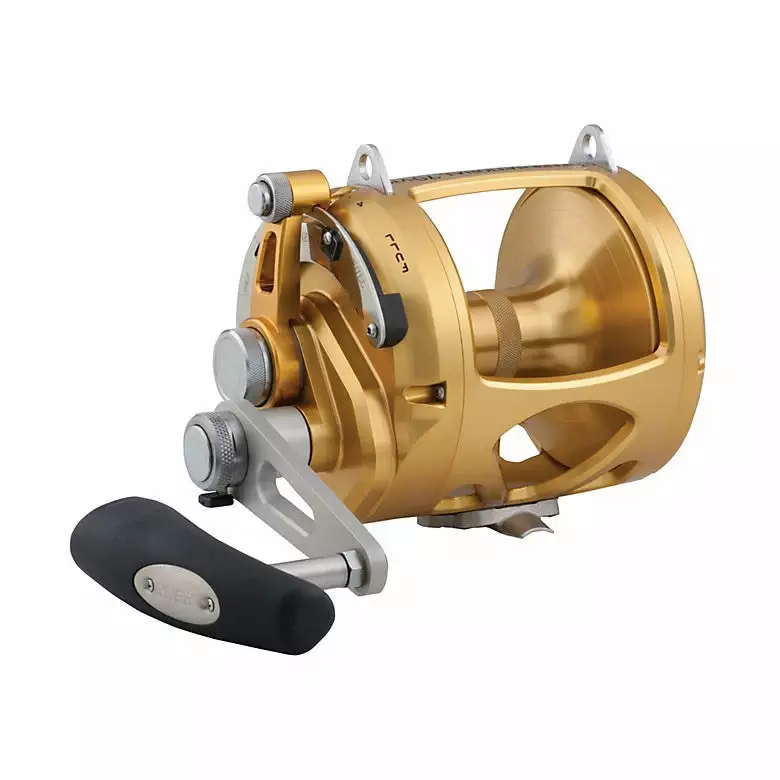

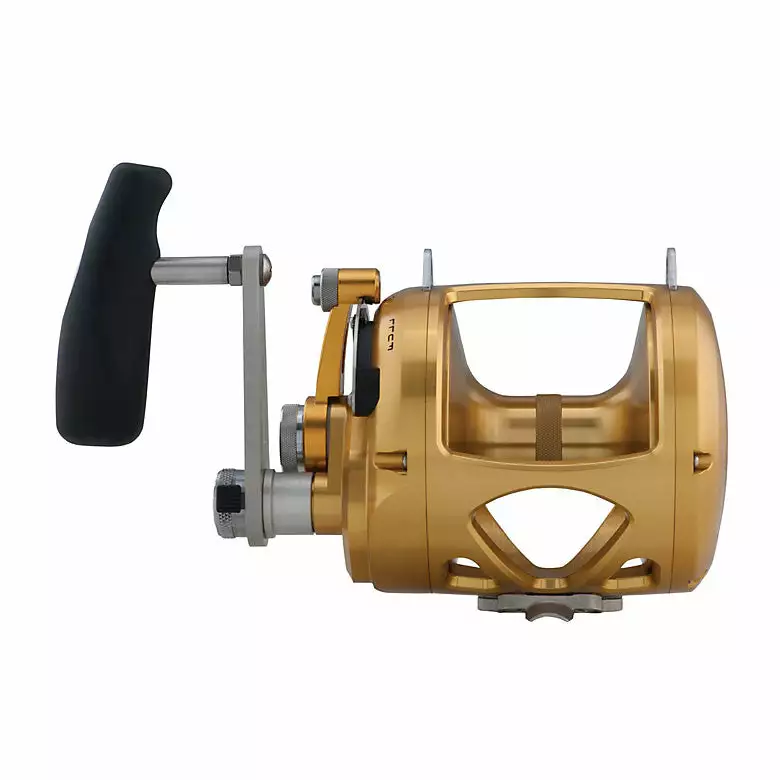

Penn International VIS Overhead Reel

The PENN International VI series is designed and manufactured in the USA of domestic and imported components. Precision machined from high-strength, lightweight, aircraft grade aluminium in our Philadelphia machining centre. Our experienced crew has been designing and producing durable, high-quality reels in this facility since 1932. The VI consists of a large stainless steel gear train for strength and speed, and a Dura-Drag system which results in a smoother start up and virtually eliminates hesitation, even under extreme drag settings.



Features

• Machined and anodised aluminium body and sideplates
• Stainless steel main and pinion gears
• Quick-Shift II™ 2-speed system
• Dura-Drag™ system
• Versa-Strike Adjustable Strike stop
• Double-dog ratchet anti-reverse
• Line Capacity Rings
• Made in the USA of domestic and imported components



Specifications



MODEL	MONO CAPACITY YD/LB	BRAID CAPACITY YD/LB	BEARING COUNT	MAX DRAG LB	GEAR RATIO	WEIGHT (G)
16VIS	1035/16 975/17 770/20	890/65 765/80 655/100	5	20lb | 9.0kg	5.2:1 / 1.6:1	360
70VIS	1085/50 960/60 685/80	2230/100 1855/130 630/200	5	55lb | 24.9kg	3.1:1 / 1.5:1	740
130VIS	1330/100 1005/130 870/150	5025/100 4175/130 3085/200	6	100lb | 45.4kg	2.3:1 / 1.1:1	1690
